Kleinberg Model

• Motivation: Watts-Strogatz Model captures the Small-World Effect, but it fails to explain the efficient decentralized search in social networks.
  • Lower bound of 1D decentralized search: $\mathbb{E}[N_A]=\Omega (\sqrt{n})$
    • Decentralized: agents know the locations of other agents (geographical, before adding long-range edges), their neighbors, can distinguish a long-range neighbor from a local neighbor, and can even know if their neighbors have long-range neighbors, but they do not know the locations of long-range neighbors of a neighbor.
    • $N_A$: the number of steps of a decentralized search algorithm $A$ to find a target node $t$ from a source node $s$, with $s,t$ chosen uniformly at random.
• Model 1D
  • Watts-Strogatz Model with $k=2$ and without removing original links
  • Add $2np$ shortcuts
  • For each shortcut, it connects two locations $r$ apart with probability $\propto r^{-\alpha }$ for some positive parameter $\alpha$, with the locations chosen uniformly at random among all pairs of locations $r$ apart
• Model 2D

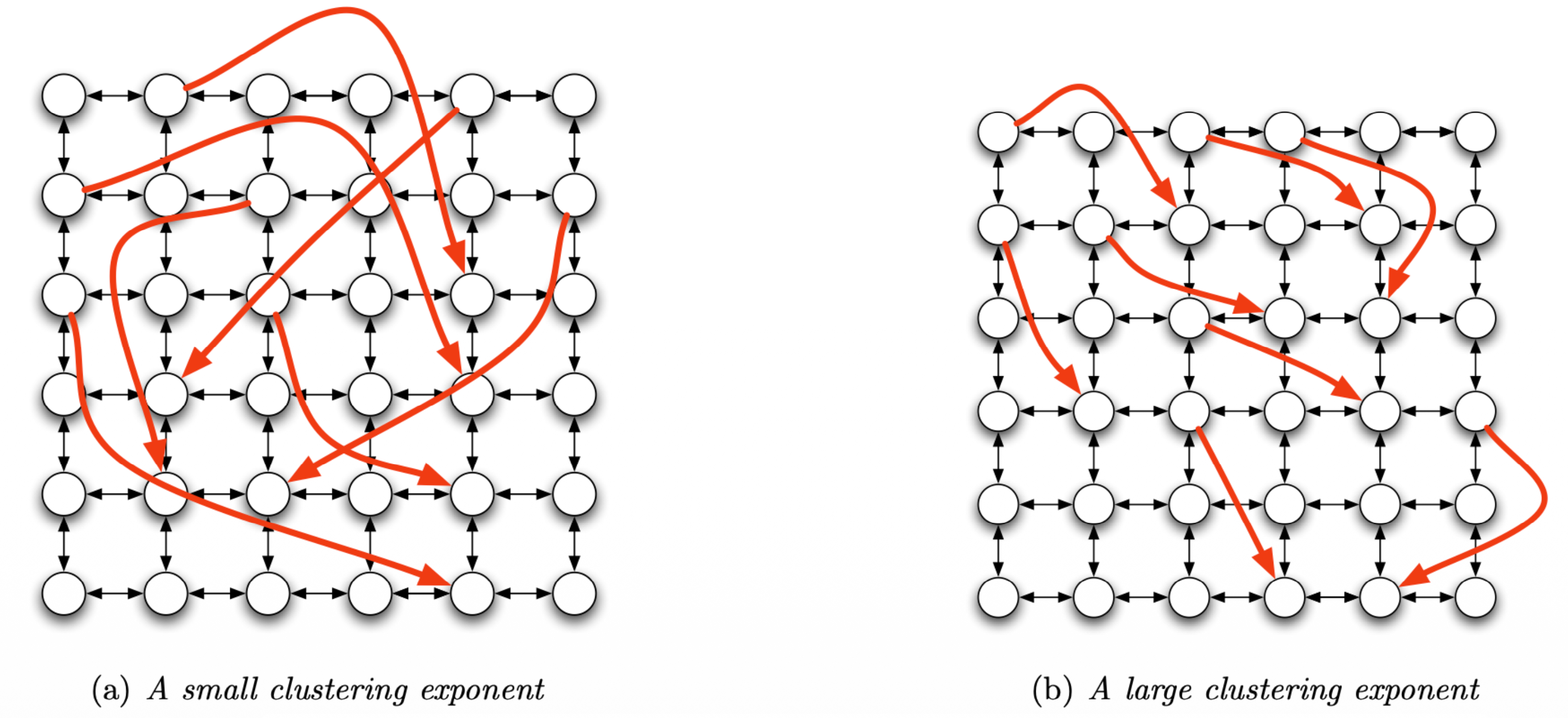

  • Agents are 2D lattice points on a $n\times n$ grid, each connected to its 4 nearest neighbors w.r.t $L_1$ distance
  • Each agent has a shortcut, which links to another agent at $L_1$ distance $r$ with probability $\propto r^{-\alpha }$ for $\alpha \in [0,3)$
• Expected steps $\mathbb{E}[N_A]$
  • 1D: $O({\ln }^{2}n)$ when $\alpha =1$; $O(n^{|1-\alpha |})$ o.w.
  • 2D: $O({\ln }^{2}n)$ when $\alpha =2$; $O(n^{|2-\alpha |})$ o.w.
• Intuition
  • The shortcut should not jump too close that it does not give enough progress, and should not jump too far that it always skips the target when it is close
  • An ideal search method is hierarchical that progressively narrows down the search space
    • The letter is first sent to anyone in the US, then to anyone in Massachusetts, then to anyone in Boston, and then to the target person
  • Uniformly random shortcuts preclude such a hierarchy

One Dimensional

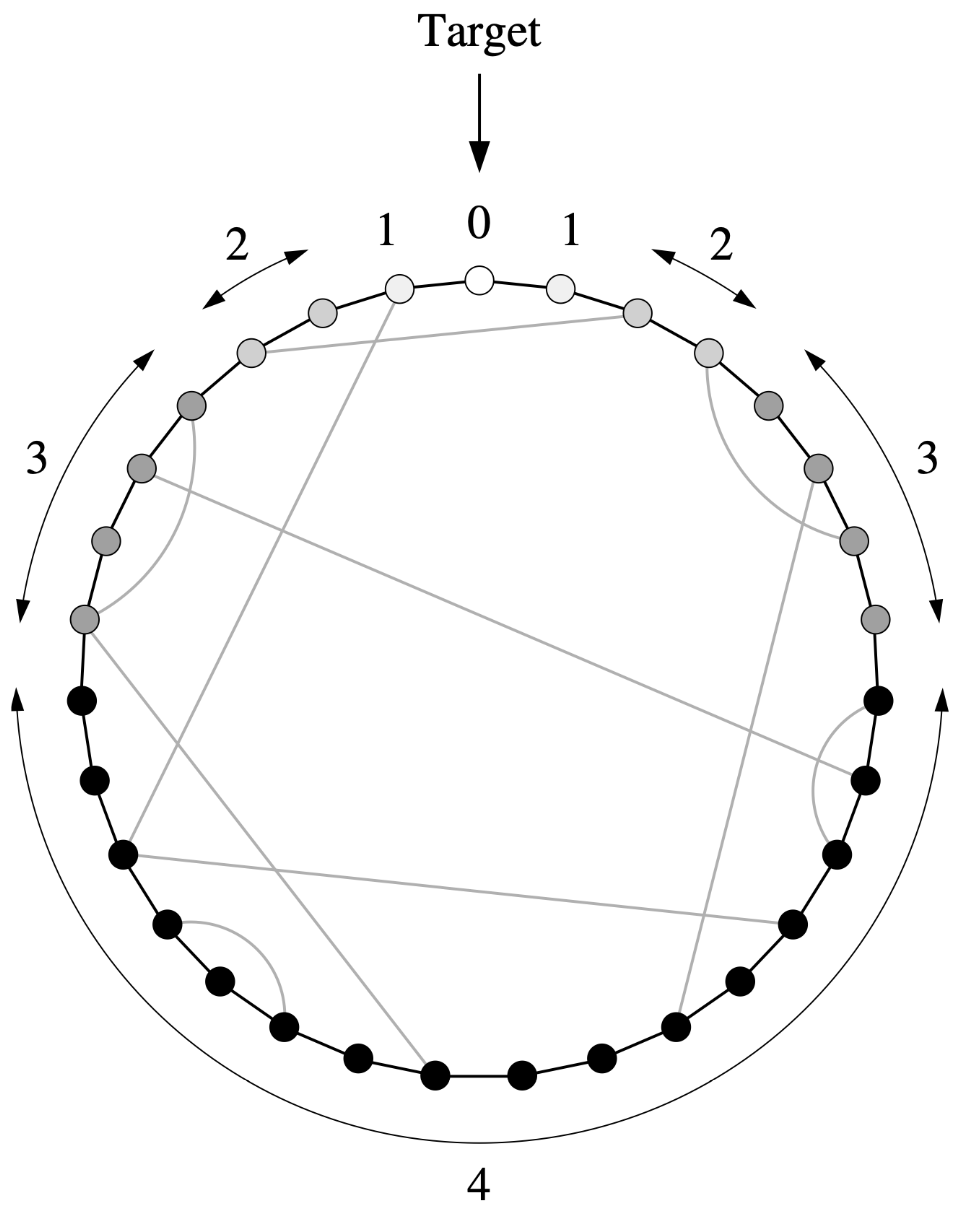

Suppose agents know the locations of other agents, i.e., the geographical distances on the ring graph. Then, agent $s$ can partition the ring into $L$ classes: Class 0 contains $t$, Class 1 contains the two 1-hop neighbors of $t$, Class 2 contains $h$-hop neighbors of $t$ for $2^1\le h<2^2$ with total $4$ nodes, …, Class $\ell$ contains $h$-hop neighbors of $t$ for $2^{\ell -1}\le h<2^{\ell }$ with total $2^{\ell }$ nodes, …, Class $L$ contains the remaining nodes. We have $2^{L+1}-1\ge n⟹L=O(\ln n)$.

We consider the following algorithm $A$: when the current agent is in Class $\ell$, it passes the message to a lower class neighbor if there is one; otherwise, it passes the message to another Class $\ell$ agent through either a shortcut or a local edge.

Let $C$ be the normalizing constant for the distribution of shortcut range $r$. Note that there are $2^{\ell }-1\ge 2^{\ell -1}$ agents in the lower classes, each of which is at most $2^{\ell +1}$ hops away from the current agent. Thus, the probability of a Class $\ell$ agent having a shortcut to a lower class is at least

$$2np\cdot \frac{1}{n}\cdot \frac{1}{2}\cdot 2^{\ell -1}\cdot C(2^{\ell +1}{)}^{-\alpha }=pC{2}^{(1-\alpha )\ell -(1+\alpha )},$$

where the $1/2$ factor comes from the fact that the shortcut can be in either direction. Then, the expected number of steps of staying in Class $k$, which follows a Geometric Distribution, is

$$\min \{\underset{\text{via a local edge}}{\underbrace{2^{\ell }}},\underset{\text{via a shortcut}}{\underbrace{\frac{2^{(\alpha -1)\ell +1+\alpha }}{pC}}}\}.$$

Thus, the expected total number of steps is bounded above by

$$\mathbb{E}[N_A]\le \frac{2^{1+\alpha }}{pC}\sum _{\ell =1}^L{2}^{(\alpha -1)\ell }=\frac{2^{1+\alpha }}{pC}\frac{1-2^{(\alpha -1)L}}{1-2^{\alpha -1}}.$$

Note that

$$C\sum _{r=1}^{\lfloor n/2\rfloor }{r}^{-\alpha }=1⟹C^{-1}\asymp \{\begin{array}{ll}{n}^{1-\alpha },& \alpha <1,\\ \ln n/2,& \alpha =1,\\ 1,& \alpha >1.\end{array}$$

Finally,

$$\mathbb{E}[N_A]\lesssim \{\begin{array}{ll}{n}^{1-\alpha },& \alpha <1,\\ {\ln }^{2}n,& \alpha =1,\\ n^{\alpha -1},& \alpha >1.\end{array}$$

Two Dimensional


Note that the number of agents within $L_1$ distance $r$ to $t$ comprises a diamond with $2r(r+1)$ agents.

When $\alpha =0$, i.e., shortcuts are uniformly random, the expected number of steps is $\Theta (n^{1/3})$, proved similarly as Lower Bound by setting $\frac{2w(w+1{)}^2}{n}\asymp w⟹w=n^{1/3}$.

Similar to One Dimensional, we partition the agents into $L$ classes with Class $\ell$ being the $2^{\ell }$-diamond minus the $2^{\ell -1}$-diamond, which contains $3\cdot 2^{2\ell -1}+2^{\ell }$ agents. The algorithm tries to move to a lower class if possible; otherwise, it moves to another agent in the same class.

The normalizing constant of the distribution of shortcut range $r$ is

$$C^{-1}\asymp \sum _{r=1}^{2n}4r\cdot r^{-\alpha }\asymp \{\begin{array}{ll}{n}^{(2-\alpha )},& \alpha <2,\\ \ln n,& \alpha =2,\\ 1,& \alpha >2.\end{array}$$

Thus, the expected total number of steps is bounded above by

$$\mathbb{E}[N_A]\le \sum _{\ell =1}^{\ln n}\frac{1}{(2^{2\ell -1}+2^{\ell })\cdot C{2}^{-\alpha (\ell +1)}}\asymp \frac{1}{C}\frac{1-n^{\alpha -2}}{1-2^{\alpha -2}}\asymp \{\begin{array}{ll}{n}^{2-\alpha },& \alpha <2,\\ {\ln }^{2}n,& \alpha =2,\\ n^{\alpha -2},& \alpha >2.\end{array}$$

General Hierarchical Model

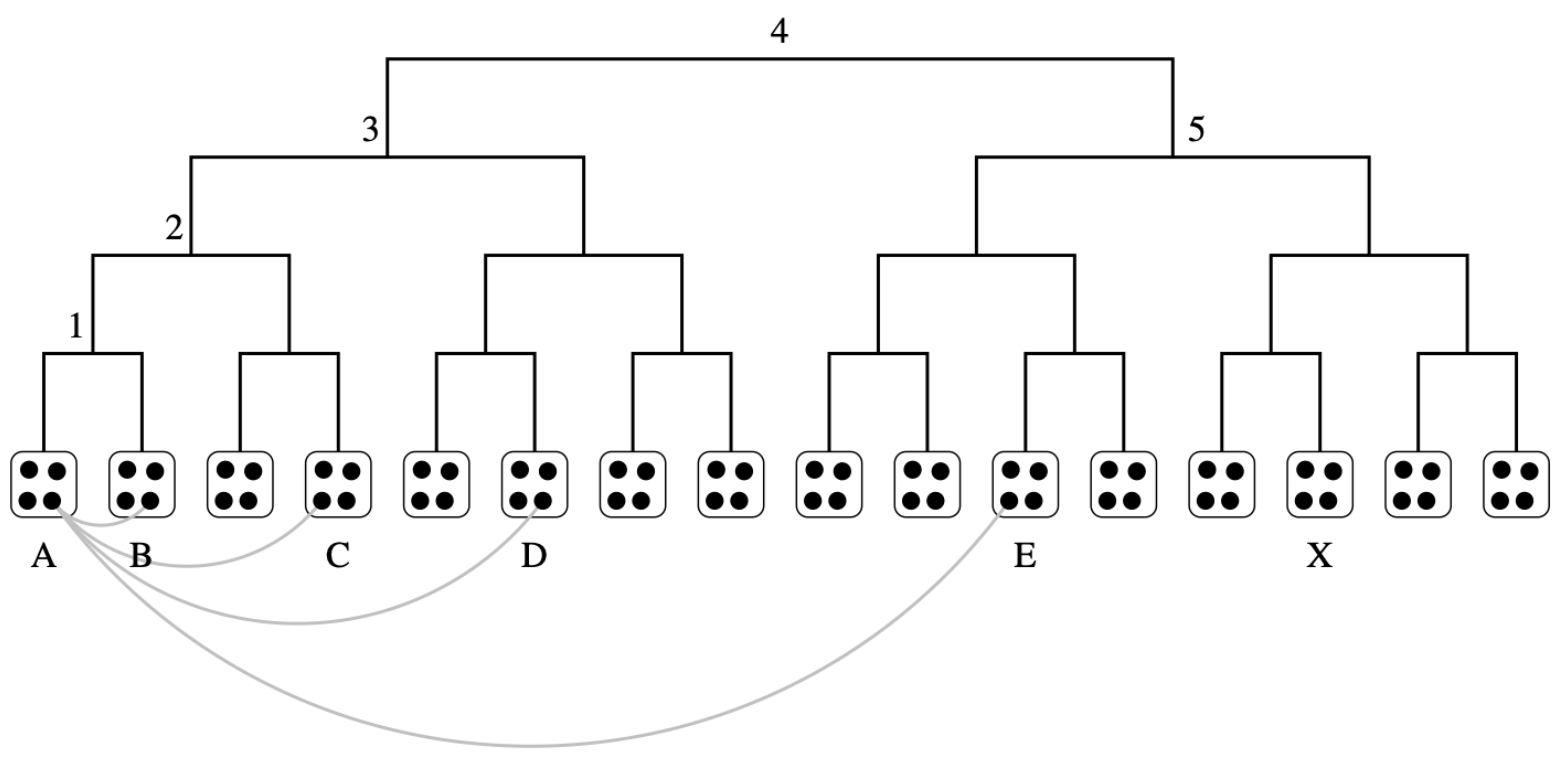

Generalizing the Kleinberg model, Watts et al. consider arbitrary networks with a shortcut mechanism specified by another shadow hierarchical tree network. Agents are grouped by the leaf node they belong to. For simplicity, we assume a binary tree with the same group size $g$. More restricted than the Kleinberg model, we assume the agents only know the tree distance between them, i.e., the height of their lowest common ancestor. Any two agents of tree distance $\ell$ is connected by a shortcut with probability $C{2}^{-\alpha \ell }$, where $C$ controls the expected number of shortcuts an agent have, say $⟨d⟩$.

Similarly, the algorithm lets an agent at tree distance $\ell$ passes the message to an agent that has a smaller tree distance to the target, i.e., the opposite subtree at height $\ell$, if it can; otherwise, it passes the message to another agent in its own subtree at height $\ell$. ^[Unlike the Kleinberg model, we cannot guarantee that the message will move into the opposite subtree; in such a case, the algorithm fails] The expected number of steps of staying at its own subtree is upper bounded by

$$1/\left(2^{\ell -1}g\cdot C{2}^{-\alpha \ell }\right)=\frac{1}{gC}{2}^{(\alpha -1)\ell +1}.$$

Thus, the total expected number of steps is bounded above by

$$\mathbb{E}[N_A\mid \text{success}]\le \frac{2}{gC}\sum _{\ell =1}^L{2}^{(\alpha -1)\ell }.$$

Note that $2^{L}g\le n⟹L=O(\ln n)$ and

$$\sum _{\ell =1}^{L}C{2}^{\ell -1}g\cdot 2^{-\alpha \ell }=⟨d⟩⟹C^{-1}\asymp \frac{1-2^{(1-\alpha )\ln n}}{1-2^{(1-\alpha )}}.$$

Finally,

$$\mathbb{E}[N_A\mid \text{success}]\lesssim (1-n^{1-\alpha })(n^{\alpha -1}-1)\asymp \{\begin{array}{ll}{n}^{1-\alpha },& \alpha <1,\\ {\ln }^{2}n,& \alpha =1,\\ n^{\alpha -1},& \alpha >1,\end{array}$$

recovering the same result as the Kleinberg model.

• This model reveals the design of the critical regime $\alpha =1$, which renders $2^{\ell -1}{2}^{-\alpha \ell }$ constant: the decrease with distance in the probability of knowing a particular person is exactly canceled out by the increase in the number of people there are to know.

Lower Bound

One Dimensional

Given $s$ ant $t$, we partition all nodes into three classes $T_0$, $T_r$, and $N\setminus (T_0\cup T_w)$, where $T_0$, $T_w$ are the 1-hop long-range neighborhood and $w$-hop short-range neighborhood of $t$, respectively. $w>0$ is to be determined later. For simplicity, consider a Watts-Strogatz Model where $k=1$ (ring graph) we $n\beta$ random long-range edges are added instead of rewiring. Then, since $s$ is uniformly random, we have

$$p_0:=P(s\in T_0)\asymp \frac{n\beta }{\left(\genfrac{}{}{0ex}{}{n}{2}\right)}\asymp \frac{\beta }{n},$$

and

$$p_w:=P(s\in T_w)\asymp \frac{w}{n}.$$

If $s\in T_0$, an algorithm needs only one step to find $t$. If $s\in T_r$, any algorithm needs $\Omega (w)$ steps to find $t$. If $s\in N\setminus (T_0\cup T_w)$, let $s_A^{\prime }$ be the next node chosen by algorithm $A$ after $s$. Since $A$ does not know if $s_A^{\prime }$ has a long-range edge to $t$, $P(s_A^{\prime }\in T_0)\asymp p_0$. Note that $s$ has $\beta$ long-range neighbors in expectation. If $A$ chooses a long-range neighbor $s_A^{\prime }$, we have

$$P(s_A^{\prime }\in T_w)\asymp \beta \frac{w}{n}.$$

If $A$ chooses a short-range neighbor, $s_A^{\prime }$ can move slightly closer to $t$ but not much, so approximately we still have $P(s_A^{\prime }\in T_w)\asymp p_w$. Therefore, the algorithm approximately follows a Geometric Distribution with “success” probability $p_0+\beta \frac{w}{n}+p_w$. Suppose $w,\beta >1$. Then this probability is of $\beta w/n$. Then, the expected number of steps until success is of $\frac{n}{\beta w}$. Since $w,\beta <n$, overall, we have

$$\begin{array}{rl}\mathbb{E}{N}_A\asymp & \left(\frac{n}{\beta w}+w\cdot \frac{w}{\beta +w}+1\frac{\beta }{\beta +w}\right)\cdot \left(1-\frac{w}{n}-\frac{\beta }{n}\right)+w\cdot \frac{w}{n}+1\cdot \frac{\beta }{n}\\ \gtrsim & \frac{(n+w^2)(n-w-\beta )}{\beta wn}+\frac{w^2}{n}\\ \gtrsim & \frac{1}{\beta wn}(n(n-\beta -w)+(n-\beta )w^2),\end{array}$$

setting whose derivative with respect to $w$ to zero gives $w=\sqrt{n}$ and

$$\mathbb{E}[N_A]\gtrsim \sqrt{n}.$$

Two Dimensional

Case I. $\alpha <2$. Similarly, let $T_w$ be the $w$-diamond around $t$, which contains $2w(w+1)$ nodes. Suppose $1\ll w\ll n$, then $s$ is outside of $T_w$ w.h.p. Then, the “success rate”, i.e., the probability of any node outside of $T_w$ having a shortcut to $T_w$ is upper bounded by

$$\sum _{i\in T_w}C\cdot \mathrm{dist}(s,i{)}^{-\alpha }\lesssim w^2\cdot C\cdot 1^{-\alpha }\asymp C{w}^2.$$

Since, $\alpha <1$, $C\asymp n^{-(2-\alpha )}$. Then, the expected number of total steps is of order

$$\frac{n^{2-\alpha }}{w^2}+w\gtrsim n^{\frac{2-\alpha }{3}}$$

Case II. $\alpha \ge 3$. $\Omega (n)$. See Problem 1 Navigation Case III. $2<\alpha <3$. $\Omega (n^{\frac{\alpha -2}{\alpha -1}})$. See Kleinberg 2000.
